MFML Cross-Validation and Learning Curves

As we saw in on of the previous examples, learning curves are a vital metric for evaluating kernel-based machine learning methods. They depict the relationship between the model’s prediction error and the amount of training data provided.

However, validating a Multi-Fidelity Machine Learning (MFML) model requires a highly specialized approach due to the nested structural constraints of the data.

The Nested Cross-Validation Strategy

Due to the strictly nested structure of the training data used in MFML, conventional cross-validation methods (like standard K-Fold random shuffling) cannot be used. If we were to randomly shuffle the training sets for each fidelity independently, we would break the hierarchy guarantee—meaning a high-fidelity geometry might no longer exist in the baseline training set!

To ensure our results are robust to the choice of training data while preserving this nested structure, we must use a Nested Validation algorithm.

For each random shuffle iteration, the procedure is as follows:

1. Highest Fidelity Sampling: Randomly select a target number of training samples, \(N_{\rm train}^{F}\), from the available highest fidelity dataset. This forms the apex subset, \(\mathcal{G}^{F}\).

2. Upper and Lower Sub-models: Train the highest fidelity sub-model on this set. Crucially, extract the exact same geometries at the lower fidelity, \(F-1\), to train the corresponding lower sub-model.

3. Going Downwards: At the next lower fidelity (\(f = F-1\)), build the new training set by strictly inheriting the geometries selected in step 1, and then randomly sampling the remaining required geometries from the available pool:

\begin{align}\mathcal{G}^{F-1} := \mathcal{G}^{F}_{\mathrm{inherited}} \cup \mathcal{G}^{F-1}_{\mathrm{random}}\end{align}

4. Recursion: Repeat this nested sampling process recursively downwards until the baseline fidelity (\(f = f_b\)) is reached.

More details can be found in the publication: Mach. Learn.: Sci. Technol. 5 015054 (10.1088/2632-2153/ad2cef)

Finally, all models are evaluated on an unseen test set, and the prediction errors are reported as Mean Absolute Errors (MAE) using a discrete \(L_1\) norm:

\begin{align}MAE = \frac{1}{N_{\mathrm{test}}}\sum_{q=1}^{N_{\mathrm{test}}}\left\lvert P_{\mathrm{ML}}\left(\boldsymbol{X}_q^{\mathrm{ref}}\right) - {y}^{\mathrm{ref}}_q\right\rvert\end{align}

The MFML class natively handles the shuffling of training data for cross-validation while maintaining the nested structure requirements for the multifidelity data.

import numpy as np
import matplotlib.pyplot as plt
from tqdm import tqdm
from mfml_qc.datasets import load_benzene_data
from mfml_qc.utils import build_hierarchy_arrays, top_down_subsetting
from mfml_qc.mfml import ModelMFML

Loading and Formatting Data

We load the dataset and establish our fixed test set of the last 2,712 geometries. The remaining 12,288 geometries act as our sampling pool.

dataset = load_benzene_data()

X_CM = dataset["X_CM"]
data = dataset["energies"]

# Fidelities: LC-DFTB, STO-3G, def2-SVP, def2-TZVP
hierarchy_cols = [2, 3, 6, 7]

# Establish fixed train/test masks
train_mask = data[:, 0] < 12288
test_mask = data[:, 0] >= 12288

X_train_parent = X_CM[train_mask]
X_test = X_CM[test_mask]
data_train = data[train_mask]
data_test = data[test_mask]

y_trains, indexes, means = build_hierarchy_arrays(data_train, hierarchy_cols)

# Extract test (reference) energies
y_test_true = data_test[:, hierarchy_cols[-1]]

Generating the Learning Curve

We will generate a learning curve by training the MFML model at different training set sizes. We simply double the training size at each lower fidelity (e.g., if the highest fidelity gets 64 samples, the hierarchy will be 512, 256, 128, 64).

We perform this for navg = 5 random shuffles to calculate variance.

# High fidelity target sizes
hf_train_sizes = 2 ** np.arange(1, 9)
navg = 5

# Storage array for MAEs: shape (num_sizes, navg)
mfml_maes = np.zeros((len(hf_train_sizes), navg))

# Initialize a base model once
mfml_model = ModelMFML(kernel="matern", sigma=715.0, reg=1e-9, p_bar=False)

for n in range(navg):
    for s_idx, hf_size in enumerate(hf_train_sizes):
        # Define the target hierarchy sizes: [8x, 4x, 2x, 1x]
        n_trains_target = [hf_size * 8, hf_size * 4, hf_size * 2, hf_size]
        # Nested shuffling of data
        subset_y_trains, subset_indexes = top_down_subsetting(
            y_trains, indexes, n_trains_target, seed=42 + n
        )
        # Train the MFML model
        mfml_model.train(
            X_train_parent=X_train_parent,
            y_trains=subset_y_trains,
            indexes=subset_indexes,
        )
        # Predict on the test set
        preds = mfml_model.predict(X_test=X_test, optimiser="default")
        preds += means[-1]  # Un-center predictions

        # MAE in kcal/mol
        mae = np.mean(np.abs(preds - y_test_true)) * 23

        mfml_maes[s_idx, n] = mae

Visualizing the Learning Curve

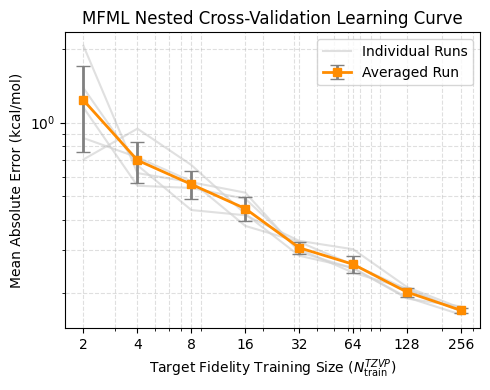

Finally, we can plot the average MAE with standard deviation error bars against the number of high-fidelity training samples.

mean_mae = np.mean(mfml_maes, axis=1)
std_mae = np.std(mfml_maes, axis=1)

plt.figure(figsize=(5, 4))

# individual learning curves
for n in range(navg):
    plt.plot(
        hf_train_sizes,
        mfml_maes[:, n],
        color="lightgray",
        linestyle="-",
        alpha=0.7,
        zorder=1,
        label="Individual Runs" if n == 0 else None,
    )

# the average learning curve
plt.errorbar(
    hf_train_sizes,
    mean_mae,
    yerr=std_mae,
    fmt="s-",
    color="darkorange",
    ecolor="gray",
    capsize=5,
    linewidth=2,
    label="Averaged Run",
)

# plot cosmetics
plt.xscale("log")
plt.yscale("log")
plt.xticks(hf_train_sizes, labels=[str(s) for s in hf_train_sizes])

plt.xlabel(r"Target Fidelity Training Size ($N_{\rm train}^{TZVP}$)")
plt.ylabel("Mean Absolute Error (kcal/mol)")
plt.title("MFML Nested Cross-Validation Learning Curve")
plt.legend()
plt.grid(True, which="both", ls="--", alpha=0.4)
plt.tight_layout()
plt.show()
